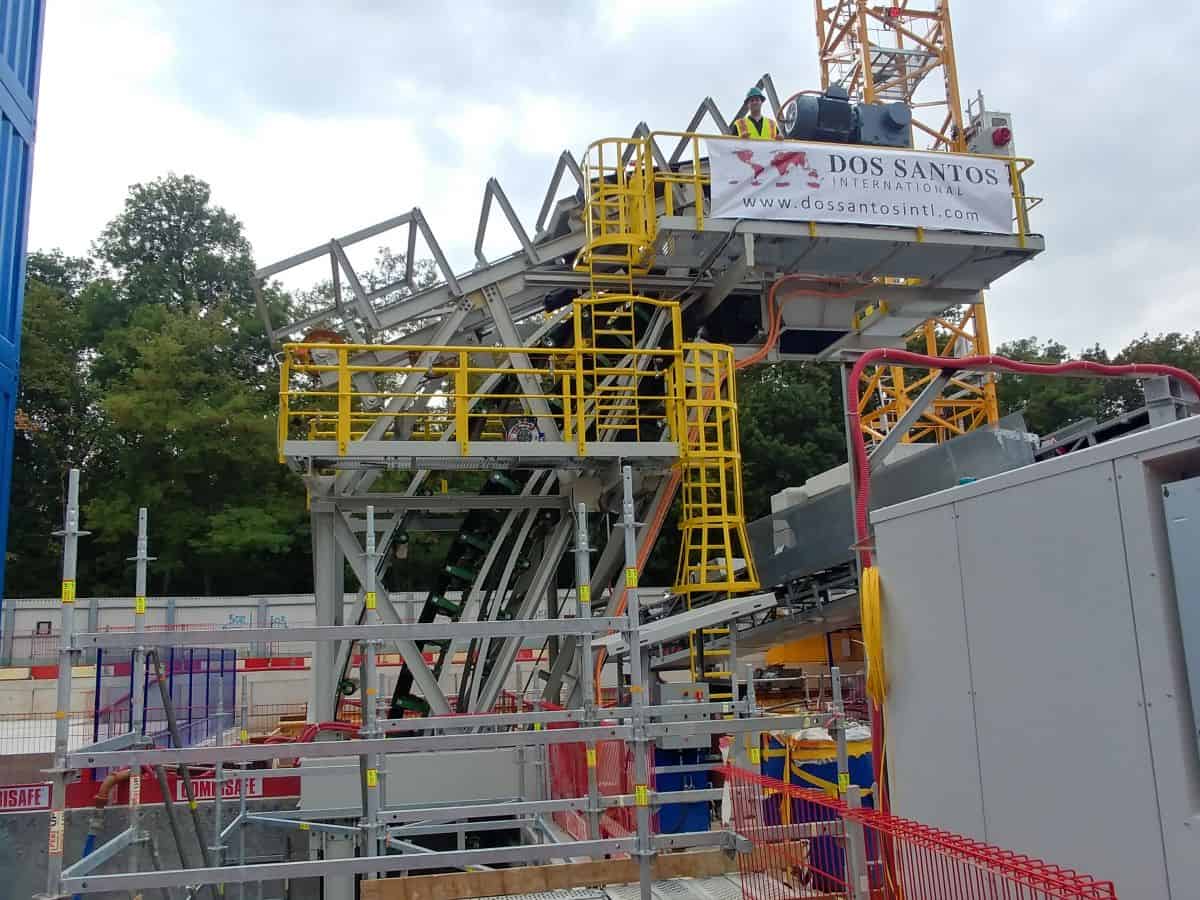

Description
Material: Tunnel muck
Density: 1.6 t/cu-m | 100 PCF
Size: 150 mm | 5.9 in
Conveying rate: 800 t/h | 882 STPH
Conveying angle: 90 degrees
Belt width: 1400 mm | 55 in
Belt speed: 3.00 m/s | 591 FPM
Lift: 26323 mm | 86.4 ft
Length: 35197 mm | 115.5 ft
Top drive power: 75.0 kW | 101.0 HP
Bottom drive power: 75.0 kW | 101.0 HP
