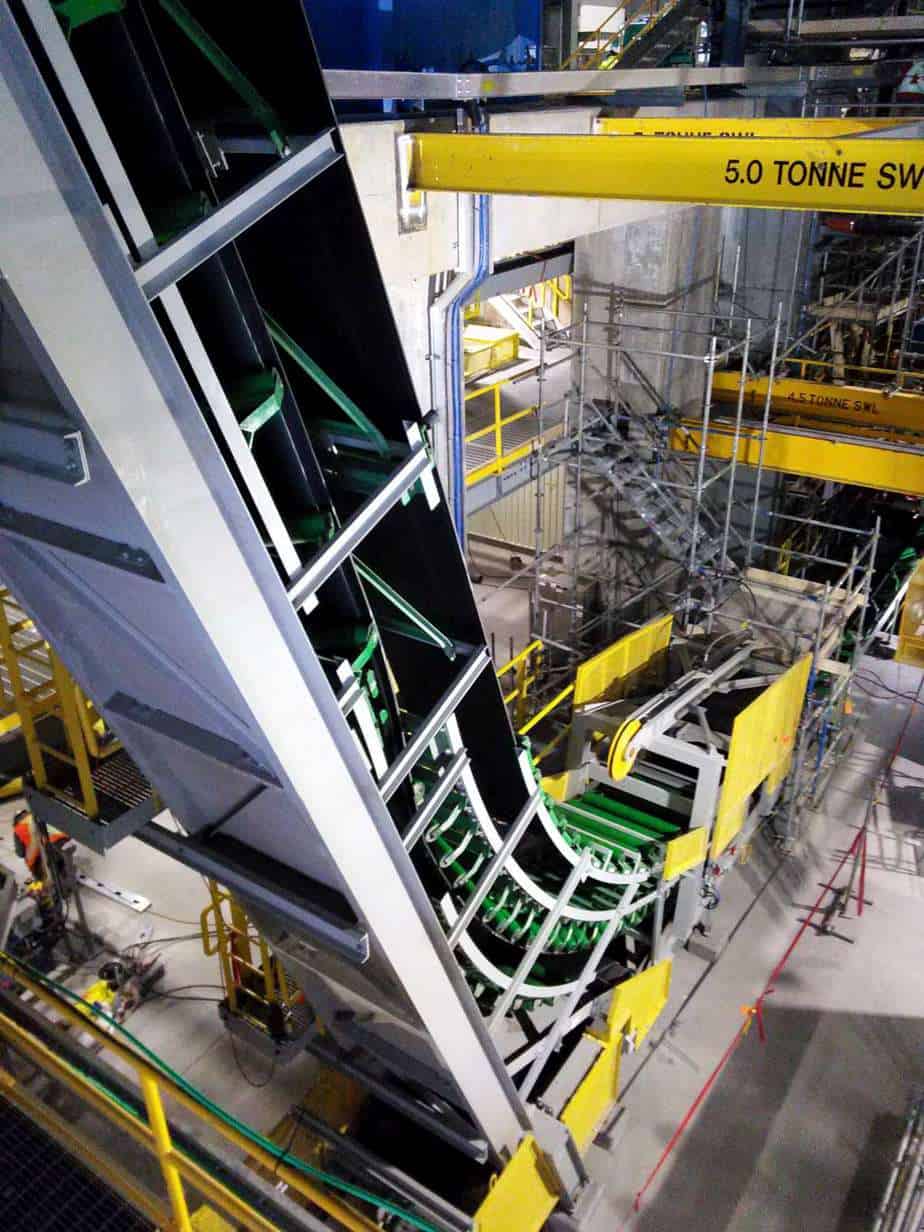

Description
Material: Pebble Ore
Density: 1.7 t/cu-m | 103 PCF
Size: 76 mm | 3.0 in
Conveying rate: 45 t/h | 50 STPH
Conveying angle: 70 degrees
Belt width: 914 mm | 36 in
Belt speed: 0.71 m/s | 140 FPM
Lift: 13490 mm | 44.2 ft
Length: 30900 mm | 101.5 ft
Top drive power: 7.5 kW | 10.0 HP
Bottom drive power: 7.5 kW | 10.0 HP
